Async-await support for Combine’s sink and map

Async-await in Swift is getting more popular as time goes by, but Combine publishers do not have built-in support for it currently. In this blog post, we’ll see how to expand some of the existing publishers.

Async-await supported sink

One case where I have encountered this is when I have wanted to call an async function in sink. Although I could wrap the call with Task within the sink subscriber, it gets unnecessary long if I need to do it in many places. Instead, we can just do it once and add an async-await supported sink subscriber.

extension Publisher where Self.Failure == Never {
func sink(receiveValue: @escaping ((Self.Output) async -> Void)) -> AnyCancellable {
sink { value in
Task {
await receiveValue(value)
}
}
}
}
// Allows writing sink without Task
$imageURL
.compactMap({ $0 })
.sink { [weak self] url in
await self?.processImageURL(url)
}
.store(in: &cancellables)
view raw ViewModel.swift hosted with ❤ by GitHub

Async-await supported map

The Combine framework has map and tryMap for supporting throwing functions, but is lacking something like tryAwaitMap for async throwing functions. Combine has a publisher named Future which supports performing asynchronous work and publishing a value. We can use this to wrap a Task with asynchronous work. Another publisher in Combine is flatMap what is used for turning one kind of publisher to a new kind of publisher. Therefore, we can combine these to turn a downstream publisher to a new publisher of type Future. The first tryAwaitMap below is for a case where the downstream publisher emits errors, and the second one is for the case where the downstream does not emit errors. We need to handle these separately since we need to tell Combine how error types are handled (non-throwing publisher has failure type set to Never).

extension Publisher {
public func tryAwaitMap<T>(_ transform: @escaping (Self.Output) async throws -> T) -> Publishers.FlatMap<Future<T, Error>, Self> {
flatMap { value in
Future { promise in
Task {
do {
let result = try await transform(value)
promise(.success(result))
}
catch {
promise(.failure(error))
}
}
}
}
}
public func tryAwaitMap<T>(_ transform: @escaping (Self.Output) async throws -> T) -> Publishers.FlatMap<Future<T, Error>, Publishers.SetFailureType<Self, Error>> {
// The same implementation but the returned publisher transforms failures with SetFailureType.
}
}
// Case 1: throwing downstream publisher
$imageURL
.tryMap({ try Self.validateURL($0) })
.tryAwaitMap({ try await ImageProcessor.process($0) })
.map({ Image(uiImage: $0) })
.sink(receiveCompletion: { print("completion: \($0)") },
receiveValue: { print($0) })
.store(in: &cancellables)
// Case 2: non-throwing downstream publisher
$imageURL
.compactMap({ $0 })
.tryAwaitMap({ try await ImageProcessor.process($0) })
.map({ Image(uiImage: $0) })
.sink(receiveCompletion: { print("completion: \($0)") },
receiveValue: { print($0) })
.store(in: &cancellables)
view raw ViewModel.swift hosted with ❤ by GitHub

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Categories
Combine iOS Swift

Combine publishers merge, zip, and combineLatest on iOS

While working on an app where I needed to subscribe to multiple Combine publishers, I got confused about if I should use merge, zip or combineLatest. These publishers are quite similar with subtle differences. For making sure I never get confused about it, I am going to present examples in this week’s blog post.

Merge

Merge publisher just re-publishes any values received from any of the publisher. Useful when there are multiple sources of data we would like to combine into a single flow of updates.

@Published var state1 = "0"
@Published var state2 = "a"
func mergeExample() {
$state1.merge(with: $state2)
.sink { value in
print("sink", value)
}
.store(in: &cancellables)
print("will change state1 to 1")
state1 = "1"
print("will change state1 to 2")
state1 = "2"
print("will change state2 to b")
state2 = "b"
print("will change state1 to 3")
state1 = "3"
print("will change state2 to c")
state2 = "c"
}
/* output:
sink: 0
sink: a
will change state1 to 1
sink: 1
will change state1 to
sink: 2
will change state2 to b
sink: b
will change state1 to 3
sink: 3
will change state2 to c
sink: c
*/
view raw Merge.swift hosted with ❤ by GitHub

Zip

Zip waits until it has received at least one element from each of the underlying publisher, and then delivers the value as a tuple. If one of the publisher publishes multiple values, then the first received value is part of the tuple and other values are part of next tuples after that.

@Published var state1 = "0"
@Published var state2 = "a"
func zipExample() {
$state1.zip($state2)
.sink { value in
print("zip", value)
}
.store(in: &cancellables)
print("will change state1 to 1")
state1 = "1"
print("will change state1 to 2")
state1 = "2"
print("will change state2 to b")
state2 = "b"
print("will change state1 to 3")
state1 = "3"
print("will change state2 to c")
state2 = "c"
}
/* output
sink ("0", "a")
will change state1 to 1
will change state1 to 2
will change state2 to b
sink ("1", "b")
will change state1 to 3
will change state2 to c
sink ("2", "c")
*/
view raw Zip.swift hosted with ❤ by GitHub

CombineLatest

CombineLatest publishes a tuple whenever any of the underlying publishers emits an element. The tuple contains the latest value from each of the publisher.

@Published var state1 = "0"
@Published var state2 = "a"
func combineLatestExample() {
$state1.combineLatest($state2)
.sink { value in
print("sink", value)
}
.store(in: &cancellables)
print("will change state1 to 1")
state1 = "1"
print("will change state1 to 2")
state1 = "2"
print("will change state2 to b")
state2 = "b"
print("will change state1 to 3")
state1 = "3"
print("will change state2 to c")
state2 = "c"
}
/* example
sink ("0", "a")
will change state1 to 1
sink ("1", "a")
will change state1 to 2
sink ("2", "a")
will change state2 to b
sink ("2", "b")
will change state1 to 3
sink ("3", "b")
will change state2 to c
sink ("3", "c")
*/

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Categories
Combine Foundation iOS Swift SwiftUI

Observing a KVO compatible model in SwiftUI and MVVM

In model-view-view model (MVVM) architecture the view model observes the model and provides data for the view by transforming it when needed. When the user interacts with the view and changes the data in it then the view model’s responsibility is to propagate those mutations back to the model object. Therefore, the important part in MVVM is how to manage data flows between objects. This time we’ll take a look on observing key-value observing (KVO) compatible model objects with Combine framework in SwiftUI view. The example view what we’ll build looks like this:

SwiftUI view with text fields for setting first name, last name, and street address. Under that is a label with recipient, postal address, and package contents descriptions. Under that is a button for adding more items to the package.
SwiftUI view which enables editing package related information and displays a summary of the package.

Model layer

The model object represents a package which contains information about the recipient, the sender, and the contents. The recipient and the sender are represented by a Person object which includes a first name, a last name, and a postal address. The contents is an array of immutable PackageContent objects. In Swift, we can use KVO by specifying @objc and dynamic modifiers on properties. Dynamic means that method dispatch is using objective-c runtime and therefore all the types must be representable in objective-c runtime. This immediately adds restrictions to the types we can use. When writing pure Swift code I do not recommend using KVO but sometimes we just need to use it. One example is NSManagedObject from the CoreData framework. But in this app we are not dealing with NSManagedObject but with a simple NSObject subclass instead.

final class Package: NSObject {
@objc dynamic var recipient = Person()
@objc dynamic var sender = Person()
@objc dynamic var contents = [PackageContent]()
}
final class Person: NSObject {
@objc dynamic var firstName: String = ""
@objc dynamic var lastName: String = ""
@objc dynamic var postalAddress = CNPostalAddress()
}
final class PackageContent: NSObject {
init(title: String, weight: Int) {
self.title = title
self.weight = weight
}
let title: String
let weight: Int
}
KVO compatible model object.

View Layer

The view object is responsible for describing the UI and rendering data represented by the view model. We have a simple form for modifying the recipient’s first name, last name, and the street name (for keeping this UI simple I left out all the other postal address related properties). At the bottom of the view we have a text object which just describes the package and a button for adding new items to the package’s contents. Whenever any of the package’s properties change, the view needs to reload. View reload is done through the @StateObject property wrapper (read mode about observing view models in MVVM in SwiftUI and @StateObject and MVVM inĀ SwiftUI).

struct ContentView: View {
@StateObject var viewModel = ViewModel(package: .makeExample())
var body: some View {
ScrollView {
VStack(spacing: 16) {
Text("Recipient")
.font(.headline)
InputView(title: "First name",
value: $viewModel.recipientFirstName)
InputView(title: "Last name",
value: $viewModel.recipientLastName)
Text("Address")
.font(.headline)
InputView(title: "Street",
placeholder: "e.g. 37 Christie St",
value: viewModel.street)
Text("Summary")
.font(.headline)
Text(viewModel.summary)
.frame(maxWidth: .infinity, alignment: .leading)
Button("Add item", action: viewModel.addRandomItem)
}
.padding()
}
}
}

View Model layer

The view model’s responsibility is to observe the model object and propagating view changes to the model. It acts as a transformation layer where we can transform any data in the model to anything suitable for displaying. In the example below we are reading CNPostalAddress and only returning street name and reading multiple properties and returning a summary string. View models make it easy to contain such logic and also make it more easy to test.

Foundation framework defines a publisher named NSObject.KeyValueObservingPublisher which can be used for observing KVO compatible properties. One of the approaches is to use this publisher and then bind the model changes to the view model’s own property. Combine framework provides a convenient assign operator which takes a target publisher as an argument. Convenient because we can connect it with @Published properties in the view model. @Published properties automatically notify the ObservableObject’s objectWillChange publisher which is observed by a SwiftUI view. As soon as the property changes, SwiftUI view picks up the change and reloads itself. Note that we’ll also need to propagate changes back to the model when user updates the view and therfore the @Published property. This can be achieved by connecting property’s publisher with dropFirst, removeDuplicates and assign publishers where the latter assigns the value to the model object. Drop first is used for ignoring the initial value of the property. One downside is that now we can have the same information both in the view model and in the model. But on the other hand it makes the data streams easy to read and no need to have extra observation for triggering the view reload by manually calling send() on the objectWillChange publisher.

@Published var recipientFirstName: String = ""
// Model -> View Model
package.recipient.publisher(for: \.firstName)
.assign(to: &$recipientFirstName)
// View Model -> Model
$recipientFirstName.dropFirst()
.removeDuplicates()
.assign(to: \.firstName, on: package.recipient)
.store(in: &cancellables)
view raw ViewModel.swift hosted with ❤ by GitHub
Observing model and view changes.

Another approach what we can use is providing properties in the view model which return a Binding. This allows us to write the transformation code inside the get and set closures. This is what we have done with the street property. Note that we’ll still need to observe the model as the model can change at any point. Binding just provides a way of accessing the value. Therefore, we’ll need to set up an observation and calling send() on the objectWillChange publisher.

// Observing changes
package.recipient.publisher(for: \.postalAddress)
.notifyObjectWillChange(objectWillChange)
.store(in: &cancellables)
// Providing a binding for the view
var street: Binding<String> {
let package = self.package
return Binding<String>(
get: {
package.recipient.postalAddress.street
},
set: { newValue in
let postalAddress = package.recipient.postalAddress.mutableCopy() as! CNMutablePostalAddress
postalAddress.street = newValue
package.recipient.postalAddress = postalAddress
}
)
}
extension Publisher where Self.Failure == Never {
public func notifyObjectWillChange(_ objectWillChange: ObservableObjectPublisher) -> AnyCancellable {
return self.sink { _ in
objectWillChange.send()
}
}
}
view raw ViewModel.swift hosted with ❤ by GitHub
Providing a binding for the view.

If we go back to the SwiftUI view and connect all the properties then the full implementation of the view model looks like this:

extension ContentView {
final class ViewModel: ObservableObject {
private let package: Package
private var cancellables = [AnyCancellable]()
init(package: Package) {
self.package = package
// Model -> View Model
package.recipient.publisher(for: \.firstName)
.assign(to: &$recipientFirstName)
package.recipient.publisher(for: \.lastName)
.assign(to: &$recipientLastName)
package.recipient.publisher(for: \.postalAddress)
.notifyObjectWillChange(objectWillChange)
.store(in: &cancellables)
package.publisher(for: \.contents)
.notifyObjectWillChange(objectWillChange)
.store(in: &cancellables)
// View Model -> Model
$recipientFirstName.dropFirst()
.removeDuplicates()
.assign(to: \.firstName, on: package.recipient)
.store(in: &cancellables)
$recipientLastName.dropFirst()
.removeDuplicates()
.assign(to: \.lastName, on: package.recipient)
.store(in: &cancellables)
}
// Example of using published property
@Published var recipientFirstName: String = ""
@Published var recipientLastName: String = ""
// Example of using bindings for propagating values
var street: Binding<String> {
let package = self.package
return Binding<String>(
get: {
package.recipient.postalAddress.street
},
set: { newValue in
let postalAddress = package.recipient.postalAddress.mutableCopy() as! CNMutablePostalAddress
postalAddress.street = newValue
package.recipient.postalAddress = postalAddress
}
)
}
var summary: String {
let contents = package.contents
.map({ "\($0.title) \($0.weight)" })
.joined(separator: ", ")
return """
Recipient: \(package.recipient.firstName) \(package.recipient.lastName)
Postal address: \(CNPostalAddressFormatter().string(from: package.recipient.postalAddress))
Contents: \(contents)
"""
}
func addRandomItem() {
let weight = Int.random(in: 200300)
let item = PackageContent(title: "Light bulb", weight: weight)
package.contents.append(item)
}
}
}
view raw ViewModel.swift hosted with ❤ by GitHub
View model implementation for the view.

Summary

Key-value observing is getting less and less used after the introduction of Combine and SwiftUI. But there are still times when we need to connect good old KVO compatible NSObject subclasses with a SwiftUI view. Therefore, it is good to know how to handle KVO in SwiftUI views as well.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Project

SwiftUIMVVMKVOObserving (GitHub, Xcode 12.1)

Categories
Combine Foundation iOS Swift SwiftUI Xcode

Validating string in TextField with NumberFormatter in SwiftUI

I was looking into creating a view which has TextField with NumberFormatter. Typed text would show up in a separate label and when trying to enter non-numbers, the TextField would reject those characters. Although TextField component in SwiftUI has generic initialiser init(_:value:formatter:onEditingChanged:onCommit:) it does not seem to do what we need. Value binding does not update while typing, non-number characters are not discarded, and string is not reloaded when view reloads with different model data. Therefore, I decided to create a wrapper around TextField which deals with transforming numbers to strings and implements all the before mentioned features.

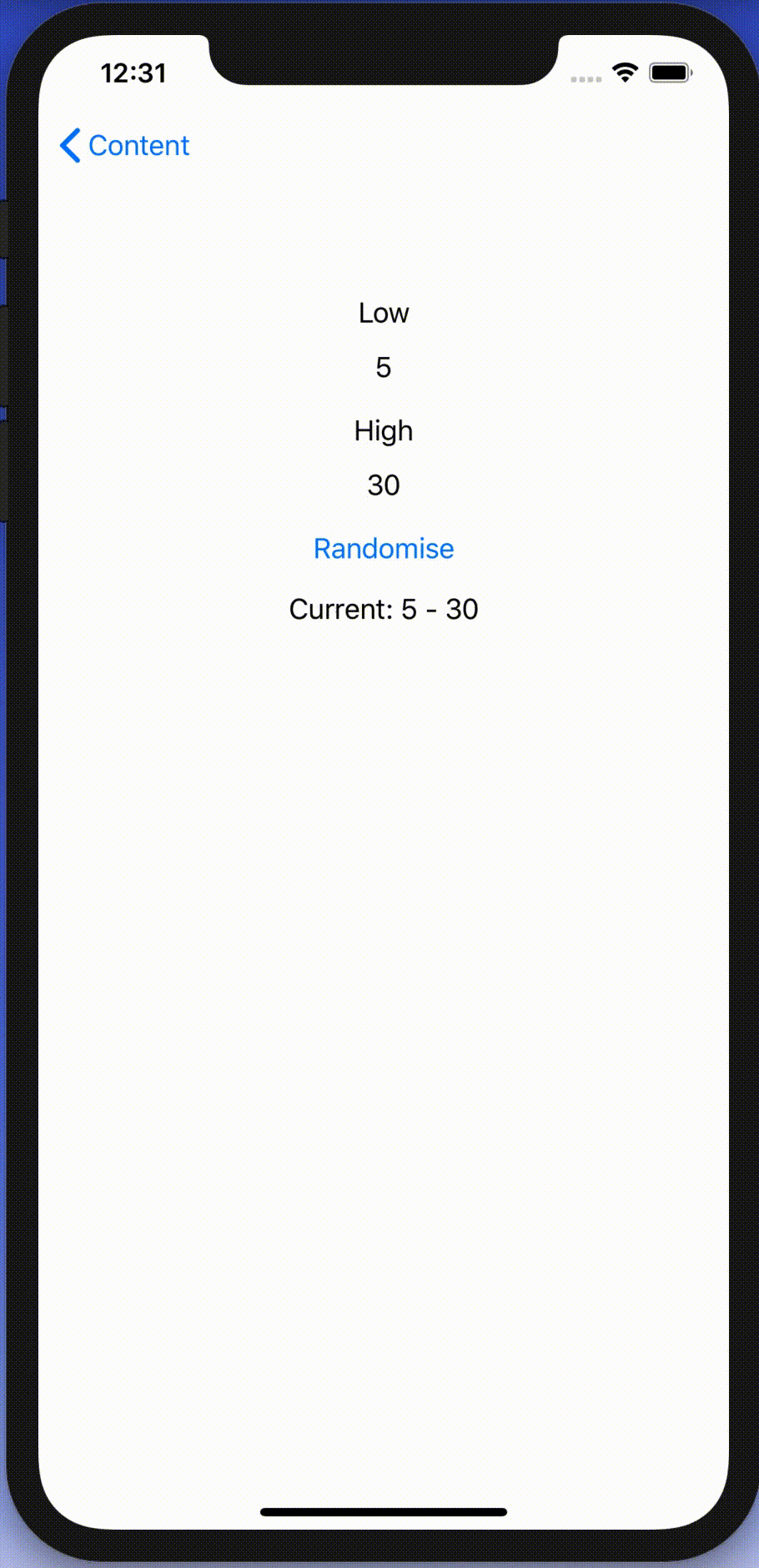

End result after creating a custom NumberTextField.

Content view with temperature limits

Example use-case is basic view for editing temperature limits where model type will force high value to be at least 10 units higher compared to low value. The model type also have separate properties for getting NSNumber instances what we use later (such conversion could also happen on SwiftUI level).

struct TemperatureLimits {
var low: Int = 5 {
didSet {
let high = max(self.high, low + 10)
guard self.high != high else { return }
self.high = high
}
}
var high: Int = 30 {
didSet {
let low = min(self.low, high 10)
guard self.low != low else { return }
self.low = low
}
}
var lowNumber: NSNumber {
get { NSNumber(value: low) }
set { low = newValue.intValue }
}
var highNumber: NSNumber {
get { NSNumber(value: high) }
set { high = newValue.intValue }
}
}
Model type storing temperature limits which are forced to have 10 unit difference.

Content view has text fields, button for randomising limits and label for displaying current values. NumberTextField is a custom view which implements all the features what we listed in the beginning of the post.

import Combine
import SwiftUI
struct FormatterView: View {
@State var limits: TemperatureLimits
var body: some View {
VStack(spacing: 16) {
VStack {
Text("Low")
NumberTextField("Low", value: $limits.lowNumber, formatter: NumberFormatter.decimal)
}
VStack {
Text("High")
NumberTextField("High", value: $limits.highNumber, formatter: NumberFormatter.decimal)
}
Button(action: {
self.limits.low = Int.random(in: 040)
self.limits.high = Int.random(in: 50100)
}, label: {
Text("Randomise")
})
Text("Current: \(limits.low)\(limits.high)")
Spacer()
}.padding()
.multilineTextAlignment(.center)
}
}
extension NumberFormatter {
static var decimal: NumberFormatter {
let formatter = NumberFormatter()
formatter.allowsFloats = false
return formatter
}
}
View with custom NumberTextFields bound to temperature limits.

Creating NumberTextField with NSNumber binding and NumberFormatter

NumberTextField is a wrapper around TextField and internally handles NSNumber to String and String to NSNumber transformations. Transformations happen inside a separate class called StringTransformer which stores editable string in @Published property. @Published property is first populated with string value by transforming NSNumber to String using the formatter. Changes made by user are captured by subscribing to stringValue publisher (@Published properties provide publishers). String to NSNumber transformation is tried when user edits the string: if successful, NSNumber is send back to model using the value binding, if fails, stringValue is set back to previous value. Note that dropFirst skips initial update when setting up sink and receive operator is used for scheduling updates at later time when SwiftUI has finished current layout update cycle.

struct NumberTextField: View {
init(_ title: String, value: Binding<NSNumber>, formatter: NumberFormatter) {
self.title = title
self.stringTransformer = StringTransformer(value, formatter: formatter)
}
private let title: String
@ObservedObject private var stringTransformer: StringTransformer
var body: some View {
TextField(title, text: $stringTransformer.stringValue)
}
}
fileprivate extension NumberTextField {
final class StringTransformer: ObservableObject {
private var cancellable: AnyCancellable?
init(_ value: Binding<NSNumber>, formatter: NumberFormatter) {
// NSNumber -> String
stringValue = formatter.string(from: value.wrappedValue) ?? ""
// String -> NSNumber
cancellable = $stringValue.dropFirst().receive(on: RunLoop.main)
.sink(receiveValue: { [weak self] (editingString) in
if let number = formatter.number(from: editingString) {
value.wrappedValue = number
}
else if !editingString.isEmpty {
// Force current model value when editing value is invalid (invalid value or out of range).
self?.stringValue = formatter.string(from: value.wrappedValue) ?? ""
}
})
}
@Published var stringValue: String = ""
}
}
NumberTextField transforming NSNumber to String using NumberFormatter and vice versa.

Summary

TextField’s formatter initialiser does not seem to be operating as expected and therefore we built a custom view. It handles number to string transformations and refreshes the view when string can’t be transformed to number. Hopefully future SwiftUI iterations will fix the init(_:value:formatter:onEditingChanged:onCommit:) initialiser and NumberTextField is not needed at all.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example project

SwiftUIFormattedTextField (Xcode 11.4.1)

Categories
Combine CoreData iOS Swift SwiftUI WatchOS

Fetching and displaying data on Watch app in SwiftUI

In previous post “Dynamic user notification on Apple Watch with SwiftUI” I was looking into how to add WatchOS app to an existing project and how to create dynamic notifications. This time, I am gonna cover basics how to fetch data from companion iOS app’s CoreData storage using WatchConnectivity framework and displaying the data in SwiftUI view.

Creating session between iOS and WatchOS app

iOS app uses CoreData for storing a list of plants with last and next watering dates. In the current setup, there is no web service and everything is stored locally on device. How to get the data in persistent store to WatchOS app?

We will use WatchConnectivity framework for making iOS and WatchOS app to be aware of each other. Connection is created by activating WCSession both in iOS and WatchOS app. Therefore the first step is to add a class managing WCSession to iOS project, let’s call it WatchConnectivityProvider (later, we’ll add similar class to WatchOS app as well). It’s main responsibility is to set up WCSession and handling WCSessionDelegate which includes fetching data from CoreData store. Therefore, one of the arguments is going to be NSPersistentContainer which gives us access to CoreData stack (access to the performBackgroundTask function).

final class WatchConnectivityProvider: NSObject, WCSessionDelegate {
    private let persistentContainer: NSPersistentContainer
    private let session: WCSession

    init(session: WCSession = .default, persistentContainer: NSPersistentContainer) {
        self.persistentContainer = persistentContainer
        self.session = session
        super.init()
        session.delegate = self
    }

WCSession is activated by calling function activate() which will asynchronously activates it. The response of the activitation is returned by session(_:activationDidCompleteWith:error:) delegate method.

func connect() {
	guard WCSession.isSupported() else {
		os_log(.debug, log: .watch, "watch session is not supported")
		return
	}
	os_log(.debug, log: .watch, "activating watch session")
	session.activate()
}
func session(_ session: WCSession,
             activationDidCompleteWith activationState: WCSessionActivationState,
             error: Error?) {
	os_log(.debug,
               log: .watch,
               "did finish activating session %lu (error: %s)",
               activationState == .activated,
               error?.localizedDescription ?? "none")
}

We’ll add similar class, but with different name, “PhoneConnectivityProvider” to WatchOS extension target. When both classes are created, we’ll need to initialise and call connect. This could be done in SceneDelegate (iOS) and ExtensionDelegate (WatchOS). Note that in iOS app we’ll need to implement two required delegate methods and for now, we can just log when those get called.

func sessionDidBecomeInactive(_ session: WCSession) {
	os_log(.debug, log: .watch, "session became inactive")
}

func sessionDidDeactivate(_ session: WCSession) {
	os_log(.debug, log: .watch, "session deactivated")
}

For testing the session we’ll first build and run iOS app and then WatchOS app. If everything goes well, Xcode logs message: “did finish activating session 1 (error: none)”. Meaning, session is up and running and we can send messages between apps. Side note, do not forget to build and run the app where changes were made.

Fetching plants from iOS app

As communication between iOS and WatchOS app relies on dictionaries, then step 1 is to define a set of shared keys what both apps use. This reduces the risk of mistyping keys. Therefore, let’s add a new file and include it in both iOS app target and WatchOS extension target.

struct WatchCommunication {
    static let requestKey = "request"
    static let responseKey = "response"

    enum Content: String {
        case allPlants
    }
}

Step 2 is implementing a refreshAllPlants(completionHandler) function in PhoneConnectivityProvider (WatchOS app extension target) which sends a message to iOS app and waits for array of plants. WCSession has a function sendMessage(_:replyHandler:errorHandler:) which we can use for sending a dictionary to iOS app and wait for reply handler. We’ll define the message to have key WatchCommunication.requestKey and the value is raw value of WatchCommunication.Content.allPlants enum case. This schema can be easily expanded later on by adding more cases to the enum. In reply handler we expect to have an array of dictionaries describing all the plants. Let’s take a look on the full implementation for a moment and then discuss how dictionary was converted to Plant value type.

func refreshAllPlants(withCompletionHandler completionHandler: @escaping ([Plant]?) -> Void) {
	guard session.activationState == .activated else {
		os_log(.debug, log: .phone, "session is not active")
		completionHandler(nil)
		return
	}
	let message = [WatchRequest.contentKey: WatchRequest.Content.allPlants.rawValue]
	session.sendMessage(message, replyHandler: { (payload) in
		let plantDictionaries = payload[WatchCommunication.requestKey] as? [[String: Any]]
		os_log(.debug, log: .phone, "received %lu plants", plantDictionaries?.count ?? 0)

		let decoder = JSONDecoder()
		decoder.dateDecodingStrategy = .secondsSince1970
		let plants = plantDictionaries?.compactMap({ Plant(dictionary: $0, decoder: decoder) })
		DispatchQueue.main.async {
			completionHandler(plants)
		}
	}, errorHandler: { error in
		os_log(.debug, log: .phone, "sending message failed: %s", error.localizedDescription)
	})
}

iOS app deals with CoreData and Plant type is NSManagedObject subclass. WatchOS app extension defines its own Plant value type because it does not have CoreData stack. For converting dictionary to value type we can use approach described in “Storing struct in UserDefault”. Only addition is configuring the JSONDecoder to use dateDecodingStrategy secondsSince1970. Reason is that we’ll going to store dates as seconds since 1970. Converting dictionary to value type involves using JSONSerialization and it supports only NSString, NSNumber, NSArray, NSDictionary, or NSNull.

// Plant value type in WatchOS app extension
struct Plant: Identifiable, Decodable, DictionaryDecodable {
    let id: String
    let name: String
    let lastWateringDate: Date
    let nextWateringDate: Date
}
// Plant class in iOS app
final class Plant: NSManagedObject, Identifiable {
    @NSManaged var id: String
    @NSManaged var name: String

    @NSManaged var lastWateringDate: Date
    @NSManaged var nextWateringDate: Date
}

Step 3 is handling the message on the iOS app side and providing data for WatchOS app. What we need to do is implementing session delegate and fetching dictionary data from CoreData store. Let’s take a look on the full implementation and then break it down.

func session(_ session: WCSession, didReceiveMessage message: [String: Any], replyHandler: @escaping ([String: Any]) -> Void) {
	os_log(.debug, log: .watch, "did receive message: %s", message[WatchCommunication.requestKey] as? String ?? "unknown")
	guard let contentString = message[WatchCommunication.requestKey] as? String , let content = WatchCommunication.Content(rawValue: contentString) else {
		replyHandler([:])
		return
	}
	switch content {
	case .allPlants:
		persistentContainer.performBackgroundTask { (managedObjectContext) in
			let all = Plant.allPlantsDictionaryRepresentation() as! [[String: Any]]
			// Replace Date with Double
			let converted = all.map { (plantDictionary) -> [String: Any] in
				plantDictionary.mapValues { (value) -> Any in
					if let date = value as? Date {
						return date.timeIntervalSince1970
					}
					else {
						return value
					}
				}
			}
			let response = [WatchCommunication.responseKey: converted]
			replyHandler(response)
		}
	}
}

The first step is to look into the received dictionary and see which content is being asked by the WatchOS app. Then we’ll access persistent store, fetch dictionary representations of Plant, convert Date to seconds since 1970 (enabling WatchOS app to use JSONSerialization on the dictionary) and then sending the data back to WatchOS app. Note that getting Plants as dictionary is very simple with CoreData: we’ll make a fetch request with result type NSDictionary and set resultType property to .dictionaryResultType. For larger models we could also provide set of properties we need (propertiesToFetch) but at the moment, every property is added to the dictionary.

extension Plant {
	static let entityName = "Plant"

	static func makeDictionaryRequest() -> NSFetchRequest<NSDictionary> {
		return NSFetchRequest<NSDictionary>(entityName: entityName)
	}
	static func allPlantsDictionaryRepresentation() -> [NSDictionary] {
		let request = makeDictionaryRequest()
		request.resultType = .dictionaryResultType
		do {
			return try request.execute()
		}
		catch let nsError as NSError {
			os_log(.debug, log: .plants, "failed fetching all plants with error %s %s", nsError, nsError.userInfo)
			return []
		}
	}
}

Setting up UI in WatchOS app using SwiftUI

WatchOS app template in Xcode is hooked up in a way where Storyboard initialises HostingController which is responsible of providing initial SwiftUI view.

class HostingController: WKHostingController<PlantListView> {
    lazy private(set) var connectivityProvider: PhoneConnectivityProvider = {
        let provider = PhoneConnectivityProvider()
        provider.connect()
        return provider
    }()

    private lazy var listViewModel = PlantListViewModel(connectivityProvider: connectivityProvider)

    override var body: PlantListView {
        return PlantListView(viewModel: listViewModel)
    }
}

PlantListView is a simple view showing a list of plants. It’s view model handles refreshing plants using the PhoneConnectivityProvider’s refreshAllPlants(withCompletionHandler:). SwiftUI view updates automatically when view model changes. This is because view model’s plants property uses @Published property wrapper, view model is ObservableObject and SwiftUI view uses ObservedObject property wrapper for view model (read more about refreshing SwiftUI view in MVVM in SwiftUI). Note that view model refreshes content as soon as SwiftUI view appears.

final class PlantListViewModel: ObservableObject {
    private let connectivityProvider: PhoneConnectivityProvider

    init(plants: [Plant] = [], connectivityProvider: PhoneConnectivityProvider) {
        self.plants = plants
        self.connectivityProvider = connectivityProvider
        refresh()
    }
    @Published private(set) var plants: [Plant]

    func refresh() {
        connectivityProvider.refreshAllPlants { [weak self] (plants) in
            guard let plants = plants else { return }
            self?.plants = plants
        }
    }
}
struct PlantListView: View {
    @ObservedObject var viewModel: PlantListViewModel

    var body: some View {
        VStack {
            List(self.viewModel.plants) { plant in
                PlantCell(viewModel: PlantCellViewModel(plant: plant))
            }
        }.onAppear {
            self.viewModel.refresh()
        }
    }
}

PlantListView uses PlantCell for displaying individual views. PlantCell has two labels and makes itself as wide as possible.

struct PlantCell: View {
    let viewModel: PlantCellViewModel

    var body: some View {
        VStack(spacing: 4) {
            Text(viewModel.title).font(.headline).multilineTextAlignment(.center)
            Text(viewModel.subtitle).font(.footnote).multilineTextAlignment(.center)
        }.padding(8)
            .frame(minWidth: 0, maxWidth: .greatestFiniteMagnitude)
    }
}
struct PlantCellViewModel {
    let plant: Plant

    var title: String {
        return plant.name
    }

    private static let dateFormatter: DateFormatter = {
        let formatter = DateFormatter()
        formatter.dateFormat = DateFormatter.dateFormat(fromTemplate: "dMMMM", options: 0, locale: .current)
        return formatter
    }()

    var subtitle: String {
        let format = NSLocalizedString("PlantCellView_NextWatering", comment: "Next watering date.")
        return String(format: format, Self.dateFormatter.string(from: plant.nextWateringDate))
    }
}

Summary

We added WCSessions to both iOS and WatchOS app and implemented delegate methods handling session and received messages. Then, we defined simple communication schema for communication and implemented refresh plants method in the WatchOS app and CoreData integration on the iOS app side. When data access was created, we added SwiftUI view displaying list of plants in the WatchOS app.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example Project

WaterMyPlants (GitHub)

Categories
Combine CoreData Foundation Generics iOS Swift SwiftUI Xcode

Using CoreData with SwiftUI

CoreData is Apple’s object graph and persistence framework. It provides data sources for synchronising data with view. Let’s take a look on how to use those data sources in SwiftUI views. Starting with NSFetchedResultsController what is used for list and collection views, after that observing NSManagedObject directly from SwiftUI view and lastly subscribing to managed object context notifications.

NSFetchedResultsController

NSFetchedResultsController is used for providing data in table and collection views. It supports sorting and filtering data and arranging data into sections. We can use delegate for getting change callbacks. NSFetchedResultsControllerDelegate contains several methods:

// Diffable data source (new in iOS 13)
optional func controller(_ controller: NSFetchedResultsController<NSFetchRequestResult>, didChangeContentWith snapshot: NSDiffableDataSourceSnapshot)
optional func controller(_ controller: NSFetchedResultsController<NSFetchRequestResult>, didChangeContentWith diff: CollectionDifference<NSManagedObjectID>)
// Manually updating table view and collection view
optional func controller(_ controller: NSFetchedResultsController<NSFetchRequestResult>, didChange anObject: Any, at indexPath: IndexPath?, for type: NSFetchedResultsChangeType, newIndexPath: IndexPath?)
optional func controller(_ controller: NSFetchedResultsController<NSFetchRequestResult>, didChange sectionInfo: NSFetchedResultsSectionInfo, atSectionIndex sectionIndex: Int, for type: NSFetchedResultsChangeType)
optional func controllerWillChangeContent(_ controller: NSFetchedResultsController<NSFetchRequestResult>)
optional func controllerDidChangeContent(_ controller: NSFetchedResultsController<NSFetchRequestResult>)

In SwiftUI we are not going to directly manipulate views. Only what we need to do is letting SwiftUI view know that data is about to change. Let’s take a look on simple app with list of items stored by CoreData. Data is represented by ColorItem where only stored value is hex string of the color (e.g. #AA22BB).

final class ColorItem: NSManagedObject {
@NSManaged var hex: String
}
view raw ColorItem.swift hosted with ❤ by GitHub

ColorItems are managed by ContentView’s view model. View model creates NSFetchedResultsController, performs fetch and provides array of fetched ColorItems to the SwiftUI’s List. In addition, view model is delegate of the NSFetchedResultsController (requires view model to be NSObject subclass). As view model is ObservableObject, we can very easily let SwiftUI view know that it should refresh. We need to do two things: firstly, implementing controllerWillChangeContent delegate method and calling send() on objectWillChange publisher. Secondly, view model property must use @ObservedObject property wrapper in SwiftUI view. Result is that SwiftUI view subscribes to objectWillChange publisher and refreshes whenever publisher emits an event.

extension ContentView {
final class ViewModel: NSObject, NSFetchedResultsControllerDelegate, ObservableObject {
private let colorController: NSFetchedResultsController<ColorItem>
init(managedObjectContext: NSManagedObjectContext) {
let sortDescriptors = [NSSortDescriptor(keyPath: \ColorItem.hex, ascending: true)]
colorController = ColorItem.resultsController(context: managedObjectContext, sortDescriptors: sortDescriptors)
super.init()
colorController.delegate = self
try? colorController.performFetch()
}
func controllerWillChangeContent(_ controller: NSFetchedResultsController<NSFetchRequestResult>) {
objectWillChange.send()
}
var colors: [ColorItem] {
return colorController.fetchedObjects ?? []
}
}
}
extension ColorItem {
static func resultsController(context: NSManagedObjectContext, sortDescriptors: [NSSortDescriptor] = []) -> NSFetchedResultsController<ColorItem> {
let request = NSFetchRequest<ColorItem>(entityName: "ColorItem")
request.sortDescriptors = sortDescriptors.isEmpty ? nil : sortDescriptors
return NSFetchedResultsController(fetchRequest: request, managedObjectContext: context, sectionNameKeyPath: nil, cacheName: nil)
}
}

And finally let’s see the ContentView implementation. NSManagedObject has objectID property what we can use in List for identifying every ColorItem. Cell is custom view what we’ll take a look at next.

struct ContentView: View {
@ObservedObject var viewModel: ViewModel
var body: some View {
NavigationView {
VStack {
List(viewModel.colors, id: \.objectID) { (colorItem) in
Cell(colorItem: colorItem)
}
}.navigationBarTitle("Colors")
}
}
}

NSManagedObject

NSManagedObject implements ObservableObject protocol and therefore it is possible to use it together with @ObservedObject property wrapper and getting SwiftUI view refreshed automatically when any of the ColorItem properties change. NSFetchedResultsController required a little bit of code for setting up delegate but that is not the case with NSManagedObject.

struct Cell: View {
@ObservedObject var colorItem: ColorItem
var body: some View {
HStack {
Text(verbatim: colorItem.hex)
Spacer()
Rectangle().foregroundColor(Color(colorItem.uiColor)).frame(minWidth: 50, maxWidth: 50)
}
}
}
view raw Cell.swift hosted with ❤ by GitHub

In addition, if there are cases where we would like to observe specific property, then Combine provides publisher for key path. Because NSManagedObject supports key-value observing we can use the publisher and subscribe to individual property changes.

let cancellable = color.publisher(for: \.hex).sink { (string) in
print(string)
}

Subscribing to CoreData notifications

When we need to observe changes in persistent store we can observe notifications sent by the framework. As NotificationCenter supports publishers, we can subscribe to it, unpack data from notification and do something with the data. For making this easier we can introduce a separate type. It will unpack the user info dictionary and filter by type. This allows to easily observe, for example, ColorItem insertions. Or, if we would like to receive every possible change, we can specify NSManagedObject as the generic type.

private var cancellables = [AnyCancellable]()
let cancellable = NotificationCenter.default.publisher(for: .NSManagedObjectContextObjectsDidChange, object: managedObjectContext)
.compactMap({ ManagedObjectContextChanges<ColorItem>(notification: $0) }).sink { (changes) in
print(changes)
}
cancellables.append(cancellable)
struct ManagedObjectContextChanges<T: NSManagedObject> {
let inserted: Set<T>
let deleted: Set<T>
let updated: Set<T>
init?(notification: Notification) {
let unpack: (String) -> Set<T> = { key in
let managedObjects = (notification.userInfo?[key] as? Set<NSManagedObject>) ?? []
return Set(managedObjects.compactMap({ $0 as? T }))
}
deleted = unpack(NSDeletedObjectsKey)
inserted = unpack(NSInsertedObjectsKey)
updated = unpack(NSUpdatedObjectsKey).union(unpack(NSRefreshedObjectsKey))
if deleted.isEmpty, inserted.isEmpty, updated.isEmpty {
return nil
}
}
}

Summary

We took a look at how to use NSFetchedResultsController and NSManagedObject in SwiftUI views. We saw that integrating NSFetchedResultsController requires only a little bit of code and using NSManagedObject even less. In addition, we looked at subscribing to CoreData notifications and unpacking notification payload.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example project

CoreDataCombineSwiftUI (Xcode 11.3)

Categories
Combine Foundation iOS Swift SwiftUI

MVVM in SwiftUI

Let’s build a simple app using MVVM (model-view-view model) where every SwiftUI view has its own view model. It’s going to be an app with two views: list of movies and add a movie view what utilises Form view. Added movies are stored in MovieStore which is shared by the two view models. We will use environment for sharing the MovieStore. It will be read from the environment when we need to create AddMovieView with its view model.

Movie and MovieStore representing data

Movie is a small struct and just stores the title and rating. Title and rating are mutable as we are going to update those in AddMovieView. We also conform to protocol Identifiable because we are going to use List view for showing all the movies. List needs a way of identifiyng the content and its the simplest way of satisfiying the requirement.

struct Movie: Equatable, Identifiable {
    let id = UUID()
    var fullTitle: String
    var givenRating: Rating = .notSeen
}

extension Movie {
    enum Rating: Int, CaseIterable {
        case notSeen, terrible, poor, decent, good, excellent
    }
}

MovieStore is also a pretty simple although in a more sophisticated app it would contain much more logic: persistence, deleting etc. We use Published property wrapper which automatically provides a publisher we can use to subscribe against.

final class MovieStore {
    @Published private(set) var allMovies = [Movie]()

    func add(_ movie: Movie) {
        allMovies.append(movie)
    }
}

For inserting shared MovieStore to environment, we’ll use custom EnvironmentKey. Custom key is just an object conforming to EnvironmentKey protocol. We need to provide the type and default value.

struct MovieStoreKey: EnvironmentKey {
    typealias Value = MovieStore
    static var defaultValue = MovieStore()
}

extension EnvironmentValues {
    var movieStore: MovieStore {
        get {
            return self[MovieStoreKey]
        }
        set {
            self[MovieStoreKey] = newValue
        }
    }
}

If we do not insert our own instance of MovieStore to the environment, the instance returned by defaultValue is used. Typically we would like to use a specific instance initialised outside of the view hierarchy. Therefore let’s take a look how to do that next.

SceneDelegate and MovieScene presentation

MovieStore dependency is passed into view models with initialiser. We’ll use the instance stored in SceneDelegate. Yet again, in a real app, it would probably live in a separate dependency container or in something similar. MovieListView is the first view we need to present, therefore we’ll initialise view model, view and insert instance of MovieStore to environment for later use (movieStore keypath is the one we just defined in EnvironmentValues‘ extension).

final class SceneDelegate: UIResponder, UIWindowSceneDelegate {
    var window: UIWindow?
    private let movieStore = MovieStore()

    func scene(_ scene: UIScene, willConnectTo session: UISceneSession, options connectionOptions: UIScene.ConnectionOptions) {
        let viewModel = MovieListView.ViewModel(movieStore: movieStore)
        let contentView = MovieListView(viewModel: viewModel).environment(\.movieStore, movieStore)

        guard let windowScene = scene as? UIWindowScene else { return }
        let window = UIWindow(windowScene: windowScene)
        window.rootViewController = UIHostingController(rootView: contentView)
        self.window = window
        window.makeKeyAndVisible()
    }
}

MovieListView and its ViewModel

We still haven’t taken a look on MovieListView and its view model, let’s do it now. View model conforms to protocol ObservableObject and uses @Published property wrappers. ObservableObject’s default implementation provides objectWillChange publisher. @Published property wrapper automatically fires the publisher when the property value is about to change. On MovieListView we have declared view model property with @ObservedObject property wrapper. This will make the view to subscribe to objectWillChange publisher and will refresh the view when-ever objectWillChange fires.

extension MovieListView {
    final class ViewModel: ObservableObject {
        private let movieStore: MovieStore
        private var cancellables = [AnyCancellable]()

        init(movieStore: MovieStore) {
            self.movieStore = movieStore
            cancellables.append(movieStore.$allMovies.assign(to: \.movies, on: self))
        }

        @Published private(set) var movies = [Movie]()
        @Published var isPresentingAddMovie = false
    }
}
struct MovieListView: View {
    @Environment(\.self) var environment
    @ObservedObject var viewModel: ViewModel

    var body: some View {
        NavigationView {
            List(self.viewModel.movies) { movie in
                Text(movie.fullTitle)
            }.navigationBarTitle("Movies")
                .navigationBarItems(trailing: navigationBarTrailingItem)
        }
    }

    private var navigationBarTrailingItem: some View {
        Button(action: {
            self.viewModel.isPresentingAddMovie = true
        }, label: {
            Image(systemName: "plus").frame(minWidth: 32, minHeight: 32)
        }).sheet(isPresented: self.$viewModel.isPresentingAddMovie) {
            self.makeAddMovieView()
        }
    }

    private func makeAddMovieView() -> AddMovieView {
        let movieStore = environment[MovieStoreKey]
        let viewModel = AddMovieView.ViewModel(movieStore: movieStore)
        return AddMovieView(viewModel: viewModel)
    }
}

Changes in MovieStore are observed by subscribing to allMovies subscriber and then assigning the new list of movies to view model’s own property. Note that assignment is triggered on subscribing and when changes happen: like KVO with initial option. Only downside is that now the list is duplicated but that’s OK. We would need to do that anyway when we would like to sort or filter the list later on.

AddMovieView and its view model are created when user taps on the plus button in the navigation bar. Environment property wrapper can be used to get the whole environment or any of the values using a specific key. In current case I went for accessing the whole environment object and then getting MovieStore using a MovieStoreKey later when needed. Then the MovieStore is not available in the whole view scope and only when creating the AddMovieView. Other option would be to use @Environment(\.movieStore) var movieStore instead.

AddMovieView and its ViewModel

AddMovieView’s view model is initialised with MovieStore and internally it represents and instance of Movie. Published property wrapper is used similarly like in MovieListView’s view model. The model object is a private property and instead of direct access, two bindings are provded for TextField and Picker. Binding represents a two way connection between the view and model. In addition, there is canSave property what is used for enabling the save button in the navigation bar. Save button should be enabled only when title is filled. To recap the view update flow: TextField or Picker will use Binding to update private property newMovie. As newMovie property uses @Published property wrapper, it will fire ObservableObject’s objectWillChange publisher. SwiftUI automatically subscribes to objectWillChange because view model’s property uses @ObservedObject.

extension AddMovieView {
    class ViewModel: ObservableObject {
        private let movieStore: MovieStore

        init(movieStore: MovieStore) {
            self.movieStore = movieStore
        }

        @Published private var newMovie = Movie(fullTitle: "")

        lazy var title = Binding<String>(get: {
            self.newMovie.fullTitle
        }, set: {
            self.newMovie.fullTitle = $0
        })

        lazy var rating = Binding<Movie.Rating>(get: {
            self.newMovie.givenRating
        }, set: {
            self.newMovie.givenRating = $0
        })

        var canSave: Bool {
            return !newMovie.fullTitle.isEmpty
        }

        func save() {
            movieStore.add(newMovie)
        }
    }
}

struct AddMovieView: View {
    @Environment(\.presentationMode) private var presentationMode
    @ObservedObject var viewModel: ViewModel

    var body: some View {
        NavigationView {
            Form {
                titleSection
                ratingSection
            }.navigationBarTitle("Add Movie", displayMode: .inline)
                .navigationBarItems(leading: leadingBarItem, trailing: trailingBarItem)
                .navigationViewStyle(StackNavigationViewStyle())

        }
    }

    private var titleSection: some View {
        Section() {
            TextField("Title", text: viewModel.title)
        }
    }

    private var ratingSection: some View {
        Section() {
            Picker(LocalizedStringKey("Rating"), selection: viewModel.rating) {
                ForEach(Movie.Rating.allCases, id: \.rawValue) {
                    Text($0.localizedName).tag($0)
                }
            }
        }
    }

    private var leadingBarItem: some View {
        Button(action: { self.presentationMode.wrappedValue.dismiss() }, label: {
            Text("Cancel")
        })
    }

    private var trailingBarItem: some View {
        Button(action: {
            self.viewModel.save()
            self.presentationMode.wrappedValue.dismiss()
        }, label: {
            Text("Save").disabled(!self.viewModel.canSave)
        })
    }
}

Summary

We created a simple app with two views. Both views had its own view model and both view models used the same dependency: MovieStore. One view model triggered changes in MovieStore and those changes were observed by the other view model. In addition, we looked into how to use SwiftUI’s environment and how to trigger view updates from view models.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example

SwiftUICombineMVVMExample (GitHub, Xcode 11.3, Swift 5)

Categories
Combine iOS Swift SwiftUI

Animating view transitions in SwiftUI

One building block for navigating from one view to another is NavigationView which is a representation of UINavigationController in UIKit. This time, let’s take a look on how to transition from one SwiftUI view to another one without NavigationView.

AppFlowCoordinator managing choosing the view

The idea is to have a root SwiftUI view with only responsibility of presenting the active view. State is stored in AppFlowCoordinator which can be accessed from other views and therefore other views can trigger navigation. Example case we’ll build, is animating transitions from login view to main view and back. As said, AppFlowCoordinator stores the information about which view should be on-screen at a given moment. All the views are represented with an enum and based on the value in enum, views are created. This coordinator is ObservableObject what makes it easy to bind to a SwiftUI view – whenever activeFlow changes, SwiftUI view is updated. The term flow is used because views can consist of stack of other views and therefore creating a flow of views.

import SwiftUI
final class AppFlowCoordinator: ObservableObject {
@Published var activeFlow: Flow = .login
func showLoginView() {
withAnimation {
activeFlow = .login
}
}
func showMainView() {
withAnimation {
activeFlow = .main
}
}
}
extension AppFlowCoordinator {
enum Flow {
case login, main
}
}
Triggering navigation using flow controller.

RootView displaying active flow

RootView selects which view is currently visible. It accesses coordinator through environment. SwiftUI requires EnvironmentObjects to be ObservableObjects, therefore this view is automatically refreshed when activeFlow changes in the AppFlowCoordinator. RootView’s body is annotated with @ViewBuilder which will enable the view to return a body with type depending on the current state (HStack is also a ViewBuilder). Other options are wrapping the views with AnyView or using Group. In our case the view types are LoginView and ContentView. Both views also define the transition animation what is used when view refresh is triggered in withAnimation closure in AppFlowCoordinator. Asymmetric enables defining different transitions when view is added and removed from the view hierarchy.

let appFlowCoordinator = AppFlowCoordinator()
let rootView = RootView().environmentObject(appFlowCoordinator)
window.rootViewController = UIHostingController(rootView: rootView)
Inserting AppFlowCoordinator to environment
struct RootView: View {
@EnvironmentObject var appFlowCoordinator: AppFlowCoordinator
@ViewBuilder
var body: some View {
ZStack {
Color.black.edgesIgnoringSafeArea(.all)
if appFlowCoordinator.activeFlow == .main {
ContentView().transition(.asymmetric(insertion: .scale, removal: .opacity))
}
else if appFlowCoordinator.activeFlow == .login {
LoginView().transition(.asymmetric(insertion: .slide, removal: .opacity))
}
else {
EmptyView()
}
}
}
}
view raw RootView.swift hosted with ❤ by GitHub
Updating currently visible flow with transition animations

Triggering navigation from SwiftUI view

Last piece we need to take a look at is how to trigger transition. As AppFlowCoordinator is in environment, any view can access the coordinator and call any of the navigation methods. When login finishes, LoginView can tell the coordinator to show the main content view.

struct LoginView: View {
@EnvironmentObject var appFlowCoordinator: AppFlowCoordinator
var body: some View {
ZStack {
Button(action: appFlowCoordinator.showMainView) {
Text("Login")
}
}
}
}
view raw LoginView.swift hosted with ❤ by GitHub
Navigating to main view from login view

Summary

We took a look on how to navigate from one SwiftUI view to another by using a coordinator object. Coordinator stored the information about which view we should currently display on screen. We saw how easy it is to trigger navigation from any of the currently visible views.

transition animation
Low FPS GIF representing the transition animation

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example

RootViewTransitions Xcode 11.2.1, Swift 5.1

Categories
Combine ImageIO iOS Swift SwiftUI

Animating GIFs and APNGs with CGAnimateImageAtURLWithBlock in SwiftUI

This year Apple added CGAnimateImageAtURLWithBlock and CGAnimateImageDataWithBlock for animating GIFs and APNGs on all the platforms to the ImageIO framework. We can pass in URL or data and get callbacks when animation changes the current frame. In Xcode 11 beta 7 implicit bridging to Swift is disabled for those APIs and therefore we need to create a small wrapper around it in Objective-C.

Creating ImageFrameScheduler for managing CGAnimateImageAtURLWithBlock in Objective-C

Calling CGAnimateImageAtURLWithBlock starts the animation immediately. When animation frame changes, the handler block is called with frame index, current animation frame image and stop argument. When setting stop to YES, we can stop the animation. With this in mind we can create ImageFrameScheduler what takes in URL and has methods for starting and stopping the animation. Then we can expose this class to Swift and use it for managing the animation.

#import <CoreGraphics/CoreGraphics.h>
#import <Foundation/Foundation.h>
NS_ASSUME_NONNULL_BEGIN
@interface ImageFrameScheduler: NSObject
– (instancetype)initWithURL:(NSURL *)imageURL;
@property (readonly) NSURL *imageURL;
– (BOOL)startWithFrameHandler:(void (^)(NSInteger, CGImageRef))handler;
– (void)stop;
@end
NS_ASSUME_NONNULL_END
#import "ImageFrameScheduler.h"
#import "ImageIO/CGImageAnimation.h" // Xcode 11 beta 7 – CGImageAnimation.h is not in umbrella header IOImage.h
@interface ImageFrameScheduler()
@property (readwrite) NSURL *imageURL;
@property (getter=isStopping) BOOL stopping;
@end
@implementation ImageFrameScheduler
– (instancetype)initWithURL:(NSURL *)imageURL {
if (self = [super init]) {
self.imageURL = imageURL;
}
return self;
}
– (BOOL)startWithFrameHandler:(void (^)(NSInteger, CGImageRef))handler {
__weak ImageFrameScheduler *weakSelf = self;
OSStatus status = CGAnimateImageAtURLWithBlock((CFURLRef)self.imageURL, nil, ^(size_t index, CGImageRef _Nonnull image, bool* _Nonnull stop) {
handler(index, image);
*stop = weakSelf.isStopping;
});
// See CGImageAnimationStatus for errors
return status == noErr;
}
– (void)stop {
self.stopping = YES;
}
@end

ImageAnimator conforming to ObservableObject in Swift

When updating views in SwiftUI, we can use ObservableObject protocol and @Published property wrapper what enables SwiftUI to get notified when the ObservableObject changes. This means that we need a model object written in Swift what stores our Objective-C class ImageFrameScheduler and exposes the current animation frame when animation is running. Whenever we update the property internally, property wrapper will take care of notifying SwiftUI to update the view.

import Combine
import UIKit
final class ImageAnimator: ObservableObject {
private let scheduler: ImageFrameScheduler
init(imageURL: URL) {
self.scheduler = ImageFrameScheduler(url: imageURL)
}
@Published var image: CGImage?
func startAnimating() {
let isRunning = scheduler.start { [weak self] (index, image) in
self?.image = image
}
if isRunning == false {
print("Failed animate image at url \(scheduler.imageURL)")
}
}
func stopAnimating() {
scheduler.stop()
}
}

ContentView displaying animation frames in SwiftUI

Integrating ImageAnimator with ContentView is now pretty straight-forward, we check if animation frame image is available and display it. Animation is started when SwiftUI appears and stopped when it disappears.

import SwiftUI
struct ContentView: View {
@ObservedObject var imageAnimator: ImageAnimator
var body: some View {
ZStack {
if imageAnimator.image != nil {
Image(imageAnimator.image!, scale: 1.0, label: Text("Gif"))
}
else {
Text("Paused")
}
}.onAppear {
self.imageAnimator.startAnimating()
}.onDisappear {
self.imageAnimator.stopAnimating()
}
}
}

Summary

Although CGAnimateImageAtURLWithBlock and CGAnimateImageDataWithBlock are not directly usable in Swift, we can get away from it by adding a simple wrapper class in Objective-C. ImageFrameScheduler could be used in non-SwiftUI views by updating UIImageView when frame changes. In SwiftUI, views can use ImageAnimator for storing the current animation frame and using @Published property wrapper for letting SwiftUI view to know when to refresh.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example Project

AnimateImageData (Xcode 11b7)

Categories
Combine iOS Swift SwiftUI

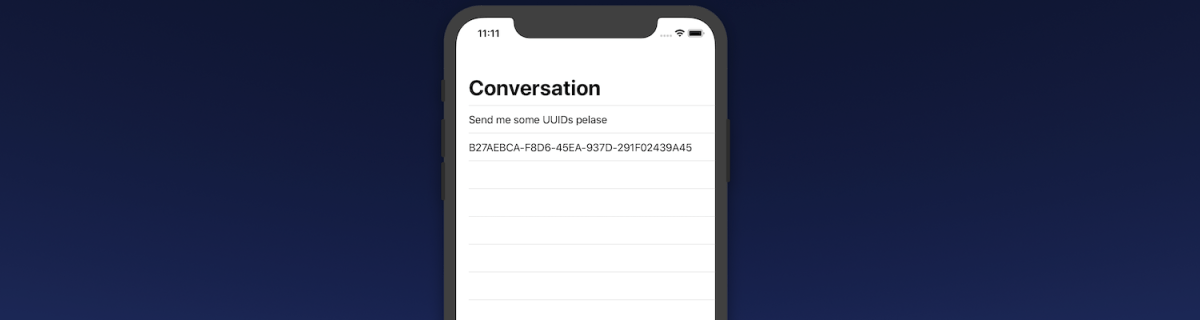

Creating chat view with Combine and SwiftUI

Let’s build a conversation view which shows a list of messages and has input text field with send button. Sent and received messages are managed by Conversation object. Conversation object manages a Session object which is simulating networking stack. This kind of setup allows us to look into how to propagate received messages from Session object to Conversation and then to the list view. We’ll jump into using types Combine and SwiftUI provide therefore if you need more information, definitely watch WWDC videos about Combine and SwiftUI.

Data layer

In the UI we are going to show a list of messages, therefore let’s define a struct for a Message. We’ll make the Message to conform to protocol defined in SwiftUI – Identifiable. We can add conformance by adding id property with type UUID what provides us unique identifier whenever we create a message. Identification is used by SwiftUI to identify messages and finding changes in the messages list.

struct Message: Identifiable {
let id = UUID()
let sender: String
let text: String
}
view raw .swift hosted with ❤ by GitHub

Session is owned by Conversation and simulates a networking stack dealing with sending and receiving messages. This like a place were we could use delegate pattern for forwarding received messages back to the Conversation. Instead of delegation pattern, we can use Combine’s PassthroughSubject. It enables us to publish new messages which we can then collect on the Conversation side. Great, but let’s see how to receive messages which are published by PassthroughSubject.

struct Session {
let messageFeed = PassthroughSubject<Message, Never>()
func send(_ message: Message) {
DispatchQueue.main.asyncAfter(deadline: .now() + .milliseconds(100)) {
self.messageFeed.send(message)
self.simulateReceivingMessages()
}
}
private func simulateReceivingMessages() {
DispatchQueue.main.asyncAfter(deadline: .now() + .milliseconds(200)) {
let receivedMessage = Message(sender: "Person B", text: UUID().uuidString)
self.messageFeed.send(receivedMessage)
}
}
}
view raw .swift hosted with ❤ by GitHub

Conversation is responsible of receiving messages from the Session and keeping the current history: list of messages. For receiving messages published by Session, we can use a subscriber called sink, which just gives access to values flowing through the channel. Subscribers are added directly to publishers, then publisher sends a subscription object back to the subscriber what subscriber can use for communicating with publisher. Here, communicating means requesting values from publisher. To recap: Session owns PassthroughSubject what Conversation starts to listen by attaching subscriber to it.

Conversation conforms to SwiftUI’s ObservableObject. When marking properties with @Published property wrapper, changes in those properties trigger updates in SwiftUI.

final class Conversation: ObservableObject {
private let session = Session()
private var messageSubscriber: AnyCancellable?
init() {
messageSubscriber = session.messageFeed.sink { [weak self] (receivedMessage) in
self?.messages.append(receivedMessage)
}
}
@Published private(set) var messages = [Message]()
func send(_ message: Message) {
session.send(message)
}
}
view raw .swift hosted with ❤ by GitHub

Creating simple list view

In SwiftUI, views are described by value types conforming to View protocol. Every view return their content in the body property. Our UI is simple enough and requires to add navigation view, list and then input view. List is the table view construct which creates new rows whenever it needs to. As we made Message to conform to Identifiable, then we can pass the messages directly to the List.

struct ContentView: View {
@ObjectBinding var conversation: Conversation
var body: some View {
NavigationView {
VStack {
List(self.conversation.messages) { message in
Text(message.text)
}
InputView(conversation: self.conversation)
}.navigationBarTitle(Text("Conversation"))
}
}
}
view raw .swift hosted with ❤ by GitHub

Input view contains text field and button for sending the entered message. Input text is local state owned by the view itself. @State is a property wrapper and internally it creates a separate storage where the input text is stored and read during view updates.

import Combine
import SwiftUI
struct InputView: View {
let conversation: Conversation
@State private var inputText = ""
var body: some View {
HStack {
TextField("", text: $inputText)
.padding(6)
.background(Color.white)
Button(action: sendMessage) {
Text("Send")
}
}.padding(12).background(Color.init(white: 0.75))
}
private func sendMessage() {
self.conversation.send(Message(sender: "PersonA", text: self.inputText))
self.inputText = ""
}
}
view raw .swift hosted with ❤ by GitHub

Now we have a the whole picture put together. Conversation object manages messages and lets SwiftUI know when it changes by using @Published property wrapper. When property wrapper dispatches change to SwiftUI, it compares the changes in the view hierarchy and updates only what is needed.

Summary

We created a basic list view what displays messages in the conversation object. We used simple constructs for passing on the data down from the Session to the SwiftUI layer. The aim of the sample project was to try out some of the ways Combine and SwiftUI allow us to build views.

If this was helpful, please let me know on Mastodon@toomasvahter orĀ Twitter @toomasvahter. Feel free to subscribe to RSS feed. Thank you for reading.

Example

ConversationInSwiftUI (Xcode 11, Swift 5.1)

Resources
